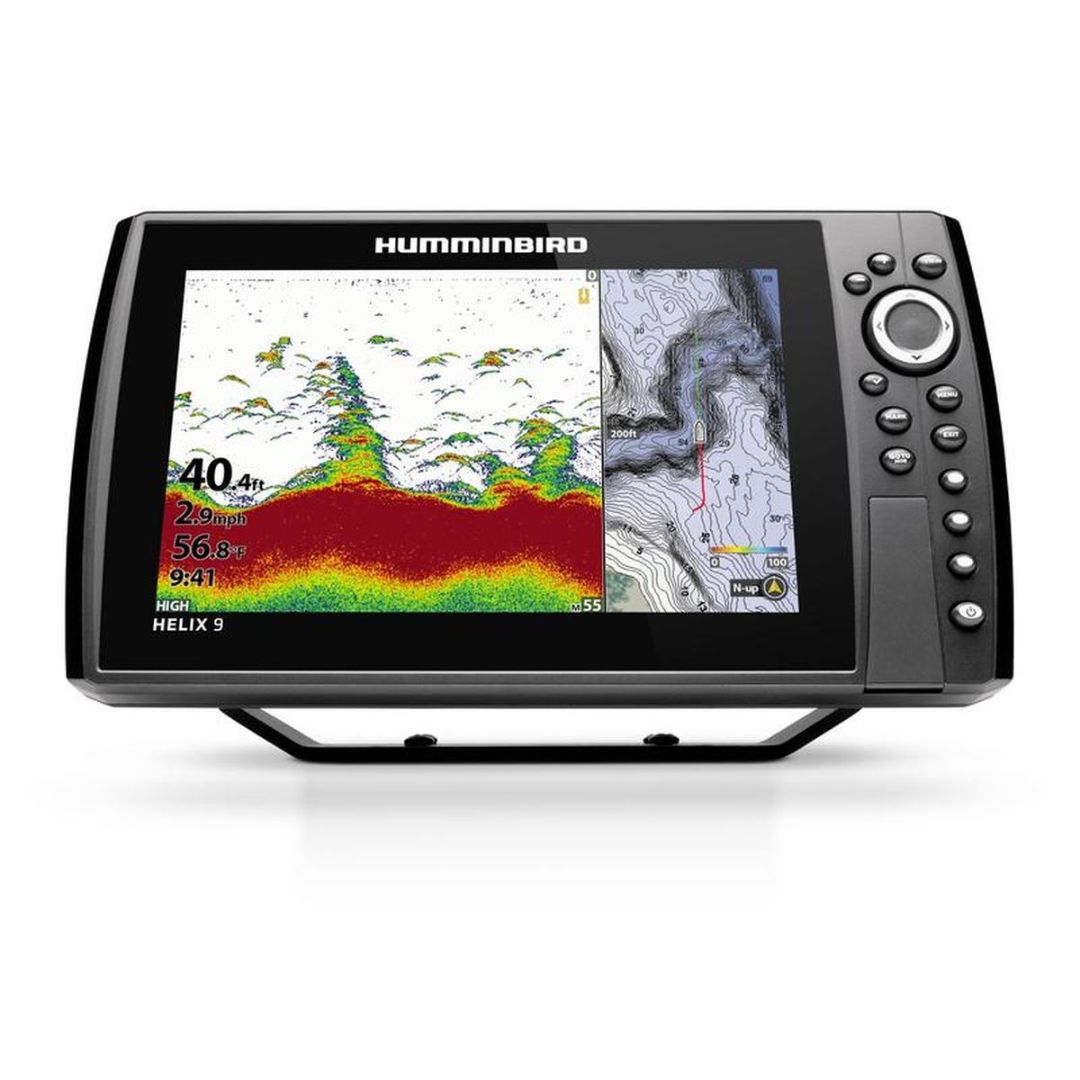

HUMMINBIRD HELIX 9 CHIRP GPS G4N #15

What's in the Box:

• HELIX 9 CHIRP GPS G4N
• Transom mount transducer and hardware
• Gimbal Bracket
• Power cable

• Item Number	411360-1
  Series	HELIX
  Display Size - Diagonal	9"
  Display Pixel Matrix	1024H x 600V
  Sonar-Standard	Dual Spectrum CHIRP
  Sonar-Coverage	20°, 42° & 60° @ -10dB
  Sonar-Optional	50 kHz, 50/Low Airmar CHIRP
  CHIRP - Frequencies Supported	Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
  Sonar-Frequencies Supported	50/80/200 kHz
  Depth-Sonar	3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
  Interface	Keypad Control
  Features	Networking, Built In GPS, Bluetooth, Dual Spectrum CHIRP, Built In Mapping, Wi-Fi
  Memory Card Slot	Dual Micro SD
  Compatible With	Minn Kota US2 Sonar, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, AIS, NMEA 2000, Radar, AutoPilot, One-Boat Network
  Power Draw	2.4 Amps
  Power Input	10.8-20 VDC
  Power Output Peak-to-Peak	8000 Watts
  Power Output RMS	1000 Watts
  Screen Snap Shot	Included
  Sonar Recording	Included
  Mount-Standard	Gimbal
  Mount-Standard Size	12.00” W x 7.0” H x 4.13” D
  Mount-Optional Size	12.00” W x 6.63” H x 1.32” D
  Transducer Mount Location	Transom
  GPS Chartplotting	Included
  GPS Trackplotting	Included
  LakeMaster Compatibility	Yes
  CoastMaster Compatibility	Yes
  Navionics Gold/HotMaps Compatibility	Yes
  Platinum Compatibility	Yes
  Heading Sensor GPS Compatibility	Yes
  Upgradable Software	Yes
  View Preset Keys	Yes
  X-Press Menu System	Yes
  Custom Digital Readout	Yes
  Custom View Selections	Yes
  Display Colors Grayscale	16-Bit
  Display Size	8" - 10"
  Speed	Included
  Temperature	Built In
  Temperature Alarm	Yes
  Temperature Graph	Yes
  Transducer Included	XNT 9 HW T
  HDMI Compatible	No
  MEGA Live Compatibility	No

• Keypad control: Master HELIX at the touch of a button. Access the preloaded views from the user-friendly menu system, operated by soft key controls that allow you to reliably operate your fish finder in any condition.
• Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
• Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
• One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
• Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
• Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.
• NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
